Opinionated Router Benchmark

Dec 8, 2022

Table of Contents

My home Internet connection is a VDSL/FTTC (fibre to the cabinet) which comes over the telephone line into a BT master socket which has an ADSL filter and requires a modem. The modems are now usually built into the BT Home/Smart Hub CPE (Customer-premises equipment) but I still use a Huawei HG612 standalone modem as I don’t particluraly like the CPE I was given. So I need router to talk PPPoE to the modem and also firewall, route and NAT my home lan traffic to the Internet. I used a pair of Linksys WRT3200ACM devices: one as a router and wireless access point and the other as just a wireless access point. However while I was quite happy with them, the overall experience was not great: Ring devices would not connect, Tapo devices would not upgrade firmware and the overall signal quality around the house was not very good. So I upgraded to some Aruba Mesh wireless access points, which turned out to be great. However this left most of the functionality of the WRT3200ACM unneeded in what is quite a large physical footprint, also I don’t want to overload the device by turning my internet router into a NAS. Thus I needed to find a replacement device that just does the routing. Also with the new access points I also changed to a managed network swtiches with vlans to allow guest wifi, untrusted iot network, etc. Thus the new device could just be a single port router on a stick with a single trunk link.

My random set of requirements for the new device (in no order):

can do the right tech networking stuff: eg PPPoR, VLANs, NAT, firewall, DHCP, DNS (resolver and local registration), NTP
be as open as possible
reasonable gui/cli: probably openwrt (as mostly everything else is rubbish and openwrt seems least worse)
easy to swap and obtain new hardware in case of failure (eg Raspebrry Pi’s are (used to be) available)
easy to backup config or capture steps to configure replacement device
no fans and no spinning rust
serial console (eg no usb keyboard/screen for debugging)
small, wall mountable and lower power (eg <20W)
link and status leds
simple to boot and work
simple (eg I don’t want virtual machine stack with 1000 things to go wrong)
ideally multiple ports to make the setup simple (eg with a single port router on a stick, bootstrapping the mgmt interfaces on a vlan is harder)

I decided on a few devices, however I was unsure how each performed. The goal of this benchmark is run iperf3 and ping from a fake client to a fake server and thus end to end test a routers bandwidth. Once an initial set of benchmarks are run on a virtual router the individual devices can then be tested by using VLANs. By connecting the test host to a trunked port and adding the untagged interfaces for the wan and lan network to the wan and lan virtual bridges the test virtual router can be switched off and the device under test can be benchmarked.

Device under test

EdgeRouter Lite 3 £21.00
GL.iNet GL-AR150 £21.30
Linksys WRT3200ACM Currently bizarrely expensive
Raspberry Pi 2 Model B Obsolete
Raspberry Pi 3 Model B Only not obsolete due to Pi4 shortage
Raspberry Pi 4 Model B Currently unobtainable

Benchmark tools

The two metrics I wanted to benchmark are throughput and latency. I used iperf3 for bandwidth and ping for latency. These three commands were used to get figures for download bandwidth, upload bandwidth and latency.

target=192.168.122.x #server ip in default libvirt network
iperf3 -c $target -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
iperf3 -c $target -i 1 -t 60 -Z -J | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
ping -c 60 -i 1 -n -q $target

After the fact it was pointed out that measuring power usage would also be interesting, so retrospectfully I used my cheap [https://www.amazon.co.uk/gp/product/B07H1ZFVFM/](Nevsetpo Power Meter).

Network setup

The test setup creates some networks using libvirt the three required networks and three test virtual machines. The server virtual machine is connected to the default network which allows the host to ssh in. It is also on a wan network without any IP, the server runs the PPPoE process on this network, emulating the ISP. The router virtual machine is also on the wan network and runs the PPPoE client and connects to the server and uses the server as its router. It’s also connected to a separate lan network which it runs DHCP services for. The final virtual machine called client it only connected to the lan network.

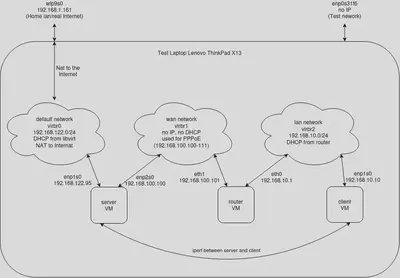

Virtual router setup

In order to prove that the test network functions as expected a virtual router was built.

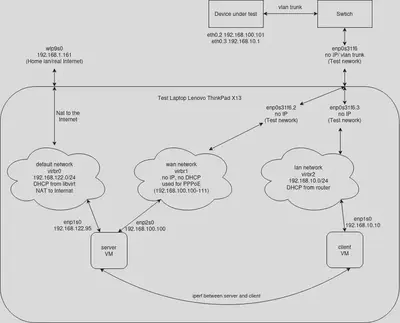

Test router setup

When the actual devices were being tested the virtual router was turned off and the tagged ethernet interface was added to the correct bridges that libvirt was using. Thus allowing the test laptop to connect to the managed switch and the devices under test were connected to the managed switch.

Create virtual network

These are the commands I ran to create the two virtual machines and see the virtual bridge device names which are used for the VM creation commands below.

for n in lan wan; do echo "<network><name>$n</name></network>" > /tmp/net.xml; sudo virsh net-define /tmp/net.xml; sudo virsh net-start $n; sudo virsh net-autostart $n; done

def=$(sudo virsh net-info default | awk '/Bridge:/{print $2}')
lan=$(sudo virsh net-info lan | awk '/Bridge:/{print $2}')
wan=$(sudo virsh net-info wan | awk '/Bridge:/{print $2}')
echo "def:$def lan:$lan wan:$wan"

Setup

Create server

Next create a new virtual machine with virt-install and inject a preseed file. It’s mostly boiler plate Debian install.

echo "H4sIAAAAAAAAA4VUTY/TMBC991dYi5DgkHoXOC0CaSWOK0BaCS5IkRtPErOOJxpPmlar/e9M6qRNGxaqtrGdN19vxu9V3hJEAJv/uFmtbOZUAC7KSlfAeY2Rg2lARSYXKhWBtkCXKIuNcWHCeBPmgKJGjJC7wEClKcQVeChYmY4xxav7zALLmfZobF46anpDoDaIHkxQTB0kZOOIkHSBXWDaTwEbEzrj54CaudWXuVvYrOXnTFgjVQu4dSQp4MmtTuAFsCXcTaCUVmti7K0mRM48VkLFlHppfIQ5phMGs7Lz/iKzKdAM9n9EdlgjWbVYvAjNTDX0amkwWhALndnQHN0A12inFAiqzhtawsYGC3uuPXb3dydmwscSDrsWiI/w5HyCq9tb9Wulxs/Ndfpev1aw4w8qJfSkSqTGsHoeF0+ykhplcDzEfWRohpP57mD9rJphblqUUXxSWvbr86L9tpGeb10xFNPgFnI5OZ/COXx4OnYYpAAZyTDMbd6TY8gD9Lk3G/AvWk+sHZ1MxJUuuFifQ5Pvf/gagweUpOmQwstpb0x0xYmcqAPmsTftxcwebEzLWQTuWl1YwkbLOpNIkS/BLbbDcDjeZ5IMgyCWR/pQrLTdzPIbHbCJj8KAGp86RWk6z24kJrIJ1kyT/VgNKBcK39mTOsVaxc6iksmi8r082Gyk0FRMRd0mc0H8eA+kMfh9nu7VkqwLrLxnmYzTbSyNZHZApn5NWE0wYEXtRFWxEmGNKiAnpynYzC3snJCCPRCW5V/kbhRm7YWwvMBG2ne8jqdbAjJK6mqs5O7+/tMb+Xurvn77fvfw8PPLreyu1Gel2ZCItRZV1gNJQHFtR41THy/9ZaCuJEnssxq59V2lILTv4vWv4A4innbKiciP+isxzoPIKxGWR31U/iFeslv9AdxbVjZ1BgAA" | base64 -d | gunzip > preseed-server.cfg
sudo virt-install --connect qemu:///system --name server --os-variant debian11 --memory 1024 --disk size=20 --location http://deb.debian.org/debian/dists/bullseye/main/installer-amd64/ --network bridge=$def,model=virtio --network bridge=$wan,model=virtio --extra-args 'language=en country=GB keymap=gb file=/preseed-server.cfg' --initrd-inject=preseed-server.cfg

The server needs to become a router, nat traffic and be the iperf server.

echo "net.ipv4.ip_forward=1" | sudo tee /etc/sysctl.d/local.conf
sudo iptables -t nat -A POSTROUTING -o enp1s0 -j MASQUERADE
sudo iperf3 -s

Setup accel-ppp on server

The server needs to run accel-ppp to run a PPPoE server see below [#On ppp/pppoe vs accel-ppp] on this selection. This is not packaged so need to be compiled and installed.

sudo apt-get install -y build-essential cmake gcc linux-headers-`uname -r` git libpcre3-dev libssl-dev liblua5.1-0-dev
git clone https://github.com/accel-ppp/accel-ppp.git
mkdir accel-ppp/build
cd accel-ppp/build
cmake -DCMAKE_INSTALL_PREFIX=/usr -DLUA=TRUE -DCPACK_TYPE=Debian11 ..
make
cpack -G DEB
sudo dpkg -i accel-ppp.deb

The setup for accel-ppp was also pretty straight forward, it seems that accel-ppp is quite nice to work with.

echo "H4sIAAAAAAAAA3VR7WrDMAz8r2eZ4ygb+wI/SQjFc5QPcGMjOyl7+yluKQ10GIMlnU6nc3sO/eopdeDDeBpmTxBjDAR2zdMp2ghuslElckw5wSy14AFaF5hKjyLmwEZvlrWE2jpHXgmH3iGVpCBPTLZXLqxLNm/SXCZ0sBH/hEQGhVbtvOY6el4y8WAdGVpik2rpuAE6GC9K3rbvmVIy+NVU+P5ZYV3vF44xKkR8WeyZbsTQipyr6n3TZ6Lvr6K87HcmHp9BS+EOG+zs/2cVMwuiwF2Iv7K0p428ed3NfLC4OxhuNGWnD18gcD8/mpfJL5QNNh9VLQe/m1qsyC4eUwh/wodkSOwBAAA=" | base64 -d | gunzip | sudo tee /etc/accel-ppp.conf
echo "debian * password *" | sudo tee /etc/chap-secrets
sudo systemctl start accel-ppp
sudo systemctl enable accel-ppp

Create router

The virtual test router was created again with virt-install the openwrt x86 image was used

wget -c https://downloads.openwrt.org/releases/22.03.2/targets/x86/64/openwrt-22.03.2-x86-64-generic-ext4-combined.img.gz
cat openwrt-22.03.2-x86-64-generic-ext4-combined.img.gz | gunzip > openwrt-22.03.2-x86-64-generic-ext4-combined.img
sudo qemu-img convert -f raw -O qcow2 openwrt-22.03.2-x86-64-generic-ext4-combined.img /var/lib/libvirt/images/openwrt.qcow2
sudo virt-install --connect qemu:///system --name openwrt --os-variant linux2020 --memory 1024 --import --disk path=/var/lib/libvirt/images/openwrt.qcow2 --network bridge=$lan,model=virtio --network bridge=$wan,model=virtio

After the router starts some initial setup needs to be performed to confgure the network, eg

uci set network.lan.ipaddr='192.168.10.1'
uci set network.wan.proto='pppoe'
uci set network.wan.username='debian'
uci set network.wan.password='password'
uci commit
reboot

A new rule needs to be added to /etc/config/firewall to allow ssh traffic to the wan:

config rule
	option name allow-ssh
	list proto tcp
	option src wan
	option dest_port 22
	option target ACCEPT

If tcpdump is needed to help debug, it can be installed with

opkg update
opkg install tcpdump

Create client

The client virtual machine was also installed via virt-install, using an almost identical preseed setup to the server machine.

echo "H4sIAAAAAAAAA4VUwWrcMBC95ytESqE9eJXQngItBHoMbSHQXgpGa41tNZLGjMbxLiH/3vHK3nXWTbtkY1n7NPPmzdO8KTuCBGDLH9cXF7ZwKgJXdaMb4LLFxNEEUInJxUZV3kHkc5TFYFycMd7EJaBqEROULjJQbSoJBR4qVqZnzPnaobDAsqc9GlvWjsJgCNQW0YOJiqmHjAyOCElX2Eem/ZwwmNgbvwS0zJ0+525hu5GvM3GD1Kzg1pFQwFNYncErYEe4m0GZVmdSGqwmRC48NiLFTL02PsES0yegou69P2M2J1rA/o8oDmskq1aLV6GFacZerQ9MJ4hFzmJsjg7ALdqZAkHTe0Nr2NRgUc91x+7+7uWY6LGGw64D4iM8B5/h6uZG/bpQ0+f6Kv9dvVWw448qE3pSNVIwrJ6nxZOspEYxjoe0Twxh3Fm+HU4/qzD6pkOx4pPS8r55WbR/DNLzR1eNxQR8hFJ2XrpwCR+fjh1GKUAsGUfflgM5hjLCUHqzBf/q6Vm1Y5BZuNpFl9qX0Bz7H7Gm5BGFNB0ovE57a5KrTuIkHbFMg+nOPHs4YzouEnDf6coSBi3rQjIlPgd32I3mcLwvhAyDINZb+lCstN0s+E0B2KQHUUBNT52zhN6zm4RJbKI1s7MfmhHlYuV7e3RRSq1KvUUlzqL6gzzYbKXQXExD/bZwUeJ4D6Qx+n2Z79VarDOs/M7ijNNtrI0wOyBzv2asJhixMu1kqmIjgzWpiJyD5mSLsLBzIgoOQFjXfxl302DWXgQrKwzSvuN1PN0SECupy6mS27u7T+/k33v19dv32/v7n19u5O1SfVaaDcmw1jKV9SgSUNrYecb9Adx6/rMFBgAA" | base64 -d | gunzip > preseed-client.cfg
sudo virt-install --connect qemu:///system --name client --os-variant debian11 --memory 1024 --disk size=20 --location http://deb.debian.org/debian/dists/bullseye/main/installer-amd64/ --network bridge=$lan,model=virtio --extra-args 'language=en country=GB keymap=gb file=/preseed-client.cfg' --initrd-inject=preseed-client.cfg

The client can then benchmark the setup by running

ping
iperf3 -c 192.168.122

On ppp/pppoe vs accel-ppp

During the benchmark I originally setup pppoe on the server as below:

apt-get install pppoe
/etc/ppp/pppoe-server-options:
    require-pap
    login
    lcp-echo-interval 10
    lcp-echo-failure 2
    ms-dns 8.8.8.8
    #defaultroute
sudo pppoe-server -I enp2s0 -L 192.168.100.100 -R 192.168.100.101 -N 20

However it became immediately obvious that the warning in the man page stating “Note that pppoe-server is meant mainly for testing PPPoE clients. It is not a high-performance server meant for production use” is correct. My very first iperf ran was not getting above about 500Mbits:

debian@client:~$ iperf3 -c 192.168.122.95
Connecting to host 192.168.122.95, port 5201
[  5] local 192.168.10.191 port 44110 connected to 192.168.122.95 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec  75.7 MBytes   635 Mbits/sec  197    128 KBytes
[  5]   1.00-2.00   sec  65.1 MBytes   546 Mbits/sec  119   99.8 KBytes
[  5]   2.00-3.00   sec  64.1 MBytes   538 Mbits/sec   66    105 KBytes
[  5]   3.00-4.00   sec  67.2 MBytes   564 Mbits/sec   72    131 KBytes
[  5]   4.00-5.00   sec  96.3 MBytes   808 Mbits/sec  304    134 KBytes
[  5]   5.00-6.00   sec  85.0 MBytes   713 Mbits/sec  305    105 KBytes
[  5]   6.00-7.00   sec  60.3 MBytes   506 Mbits/sec  124    121 KBytes
[  5]   7.00-8.00   sec  41.2 MBytes   345 Mbits/sec   15    132 KBytes
[  5]   8.00-9.00   sec  37.1 MBytes   311 Mbits/sec   22    115 KBytes
[  5]   9.00-10.00  sec  35.2 MBytes   295 Mbits/sec   21    115 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec   627 MBytes   526 Mbits/sec  1245             sender
[  5]   0.00-10.05  sec   626 MBytes   523 Mbits/sec                  receiver

iperf Done.
debian@client:~$

Which led me to try accel-ppp which immediately got >5G, which is fine given the limitation of the eventual test setup with 1G ethernet

debian@client:~$ iperf3 -c 192.168.122.95
Connecting to host 192.168.122.95, port 5201
[  5] local 192.168.10.191 port 47560 connected to 192.168.122.95 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec   581 MBytes  4.88 Gbits/sec   82   1.24 MBytes
[  5]   1.00-2.00   sec   525 MBytes  4.40 Gbits/sec    0   1.49 MBytes
[  5]   2.00-3.00   sec   616 MBytes  5.17 Gbits/sec    8   1.28 MBytes
[  5]   3.00-4.00   sec   776 MBytes  6.51 Gbits/sec    0   1.65 MBytes
[  5]   4.00-5.00   sec   761 MBytes  6.39 Gbits/sec   57   1.51 MBytes
[  5]   5.00-6.00   sec   786 MBytes  6.60 Gbits/sec    8   1.37 MBytes
[  5]   6.00-7.00   sec   659 MBytes  5.53 Gbits/sec    0   1.67 MBytes
[  5]   7.00-8.00   sec   741 MBytes  6.22 Gbits/sec   14   1.52 MBytes
[  5]   8.00-9.00   sec   775 MBytes  6.50 Gbits/sec   25   1.36 MBytes
[  5]   9.00-10.00  sec   665 MBytes  5.58 Gbits/sec  173   1.22 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec  6.72 GBytes  5.78 Gbits/sec  367             sender
[  5]   0.00-10.04  sec  6.72 GBytes  5.75 Gbits/sec                  receiver

iperf Done.
debian@client:~$

Openwrt settings

The software flow offloading seems to make a different on the edge router itself a significant. This is set within openwrt here: Network->Firewall->Routing/NAT Offloading->“Software flow offloading” is checked. I don’t know what this tunes, but it dome seem to greatly effect throughput:

Before:

debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J | jq .intervals[].sum.bits_per_second  | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
104.85571253398	143.95832408612	117.39315248792	115.34301625102	5.4882634175596
debian@client:~$
debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second  | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
133.98202421683	144.32368834649	140.3129998568	141.43796553478	2.5905254520476

After

debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J | jq .intervals[].sum.bits_per_second  | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
366.98948165016	377.51944772734	375.06583203645	377.48659500155	4.4311689211162
debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second  | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
154.39869479067	167.14585186187	161.25199461093	159.337308995	4.127788300993

Results

Virtual Router

debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J | jq .intervals[].sum.bits_per_second  | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
3407.9367981071	7025.5153129482	4044.6904311882	3884.878633075	784.2084891605
debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second  | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
1890.4471346964	4153.3714598987	2504.8815592132	2501.6399877285	258.67402567204
debian@client:~$

debian@client:~$ ping -c 60 -i 1 -n -q 192.168.122.95
PING 192.168.122.95 (192.168.122.95) 56(84) bytes of data.

--- 192.168.122.95 ping statistics ---
60 packets transmitted, 60 received, 0% packet loss, time 59139ms
debian@client:~$
rtt min/avg/max/mdev = 0.677/1.202/1.521/0.180 ms

EdgeRouter Lite 3 (OpenWrt)

debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
706.61852598118	734.05754152285	725.6825833986	723.51744	5.8027997673159
debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
160.23678182446	171.19735264291	167.98059278326	168.92555441074	2.878500629021
debian@client:~$

debian@client:~$ ping -c 60 -i 1 -n -q 192.168.122.95
PING 192.168.122.95 (192.168.122.95) 56(84) bytes of data.

--- 192.168.122.95 ping statistics ---
60 packets transmitted, 60 received, 0% packet loss, time 59103ms
rtt min/avg/max/mdev = 1.125/1.423/1.586/0.094 ms
debian@client:~$

no firewall

debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
165.5792028678	175.05476890865	171.40044218374	171.5606591917	1.8826983637162
debian@client:~$

removing most chains and masking everything accepted, only small speedup

EdgeRouter Lite 3 (EdgeOS)

debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
912.25655252287	941.33247951664	925.32853800863	922.74688	6.4803021324805
debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
908.55730208848	922.29672042931	919.64223701208	921.58126702043	3.6364279057688
debian@client:~$

debian@client:~$ ping -c 60 -i 1 -n -q 192.168.122.95
PING 192.168.122.95 (192.168.122.95) 56(84) bytes of data.

--- 192.168.122.95 ping statistics ---
60 packets transmitted, 60 received, 0% packet loss, time 59109ms
rtt min/avg/max/mdev = 1.186/1.405/1.555/0.078 ms
debian@client:~$

root@EdgeRouter-Lite-3-Port:~# show configuration commands | grep offload
set system offload hwnat disable
set system offload ipv4 forwarding enable
set system offload ipv4 pppoe enable
root@EdgeRouter-Lite-3-Port:~#

The ethtool utility did not revielt anything too interesting when chanting the above offload parameters.

ubnt@EdgeRouter-Lite-3-Port:~$ sudo ethtool -k eth0
Features for eth0:
rx-checksumming: off [fixed]
tx-checksumming: off
        tx-checksum-ipv4: off [fixed]
        tx-checksum-ip-generic: off [fixed]
        tx-checksum-ipv6: off [fixed]
        tx-checksum-fcoe-crc: off [fixed]
        tx-checksum-sctp: off [fixed]
scatter-gather: on
        tx-scatter-gather: on [fixed]
        tx-scatter-gather-fraglist: on [fixed]
tcp-segmentation-offload: off
        tx-tcp-segmentation: off [fixed]
        tx-tcp-ecn-segmentation: off [fixed]
        tx-tcp-mangleid-segmentation: off [fixed]
        tx-tcp6-segmentation: off [fixed]
udp-fragmentation-offload: off [fixed]
generic-segmentation-offload: on
generic-receive-offload: on
large-receive-offload: off [fixed]
rx-vlan-offload: off [fixed]
tx-vlan-offload: off [fixed]
ntuple-filters: off [fixed]
receive-hashing: off [fixed]
highdma: off [fixed]
rx-vlan-filter: off [fixed]
vlan-challenged: off [fixed]
tx-lockless: on [fixed]
netns-local: off [fixed]
tx-gso-robust: off [fixed]
tx-fcoe-segmentation: off [fixed]
tx-gre-segmentation: off [fixed]
tx-gre-csum-segmentation: off [fixed]
tx-ipxip4-segmentation: off [fixed]
tx-ipxip6-segmentation: off [fixed]
tx-udp_tnl-segmentation: off [fixed]
tx-udp_tnl-csum-segmentation: off [fixed]
tx-gso-partial: off [fixed]
tx-sctp-segmentation: off [fixed]
fcoe-mtu: off [fixed]
tx-nocache-copy: off
loopback: off [fixed]
rx-fcs: off [fixed]
rx-all: off [fixed]
tx-vlan-stag-hw-insert: off [fixed]
rx-vlan-stag-hw-parse: off [fixed]
rx-vlan-stag-filter: off [fixed]
l2-fwd-offload: off [fixed]
busy-poll: off [fixed]
hw-tc-offload: off [fixed]
ubnt@EdgeRouter-Lite-3-Port:~$

GL.iNet GL-AR150

debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
83.879790471605	108.84823423077	91.290876423645	94.372169063672	5.4158709865117
debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
84.889857914375	93.589790920767	90.202263768658	90.733380357641	1.4055167335145
debian@client:~$

debian@client:~$ ping -c 60 -i 1 -n -q 192.168.122.95
PING 192.168.122.95 (192.168.122.95) 56(84) bytes of data.

--- 192.168.122.95 ping statistics ---
60 packets transmitted, 60 received, 0% packet loss, time 59108ms
rtt min/avg/max/mdev = 1.106/1.478/1.653/0.094 ms
debian@client:~$

Linksys WRT3200ACM

debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
912.25296382292 933.26623870959 928.12493555184 933.19715260779 5.5982782386045
debian@client:~$
debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
916.27660222073 927.55690500113 923.47683545513 923.68469375834 1.2490526292657
debian@client:~$

debian@client:~$ ping -c 60 -i 1 -n -q 192.168.122.95

--- 192.168.122.95 ping statistics ---
60 packets transmitted, 60 received, 0% packet loss, time 59095ms
rtt min/avg/max/mdev = 0.948/1.282/1.604/0.115 ms
debian@client:~$

Raspberry Pi 2 Model B

debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
73.390486317627	105.71252088727	85.822886371737	83.885785001224	4.9785002239775
debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
80.373190822421	90.963557398859	85.710453470725	85.781736853189	1.1961847937278
debian@client:~$

debian@client:~$ ping -c 60 -i 1 -n -q 192.168.122.95
PING 192.168.122.95 (192.168.122.95) 56(84) bytes of data.

--- 192.168.122.95 ping statistics ---
60 packets transmitted, 60 received, 0% packet loss, time 59116ms
rtt min/avg/max/mdev = 1.482/1.751/2.141/0.110 ms
debian@client:~$

Raspberry Pi 3 Model B

debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
73.397021398245	111.44259586084	85.568767681851	83.885785001062	5.1750214271792
debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
78.968253833831	90.905772132877	85.325661839878	85.299583148203	1.142636239204
debian@client:~$

debian@client:~$ ping -c 60 -i 1 -n -q 192.168.122.95
PING 192.168.122.95 (192.168.122.95) 56(84) bytes of data.

--- 192.168.122.95 ping statistics ---
60 packets transmitted, 60 received, 0% packet loss, time 59117ms
rtt min/avg/max/mdev = 1.419/1.690/2.119/0.110 ms
debian@client:~$

Raspberry Pi 4 Model B

debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
922.19292596138	933.28114752119	928.33027868969	933.21306041908	5.2897155626168
debian@client:~$ iperf3 -c 192.168.122.95 -i 1 -t 60 -Z -J -R | jq .intervals[].sum.bits_per_second | while read n; do echo "$n / 1000 / 1000" | bc -l; done | datamash --sort min 1 max 1 mean 1 median 1 sstdev 1
915.57773987793	923.95114144332	923.48623632296	923.75259182339	1.1501744224565
debian@client:~$

debian@client:~$ ping -c 60 -i 1 -n -q 192.168.122.95
PING 192.168.122.95 (192.168.122.95) 56(84) bytes of data.

--- 192.168.122.95 ping statistics ---
60 packets transmitted, 60 received, 0% packet loss, time 59118ms
rtt min/avg/max/mdev = 0.798/1.036/1.225/0.088 ms
debian@client:~$

Results Summary

Device	Average download speed (Mbit/s)	Average upload speed (Mbit/s)	Average ping round trip time (milliseconds)	Power usage when idle
EdgeRouter Lite 3 (OpenWrt)	168	726	1.423
EdgeRouter Lite 3 (EdgeOS))	919	925	1.405	5.9
GL.iNet GL-AR150	90	91	1.478	0.8
Linksys WRT3200ACM	924	928	1.282
Raspberry Pi 2 Model B	86	86	1.751	2.3 (no sd card)
Raspberry Pi 3 Model B	85	86	1.690	2.3 (with pgs hat)
Raspberry Pi 4 Model B	923	928	1.036	3.1 (no sd card)

Result graphs

Remarks

The virtual router was able to reach speeds greater than 2 Gigabits per second, with latency low, albeit variable. Thus proving the test setup worked and is performant enough to saturate a 1G device. Furthermore the results for the Raspberry Pi 4 prove the test hosts ethernet and managed switch is also cable of 1G line level performance.

Ultimately these tests were what made me choose a Raspberry Pi 4 for my router.
